방위산업용 커넥터 > MIL-DTL-26482- Ⅱ
- 사용처 : 군통신장비,궤도차량,철도차량 EMI(전자파장해) 적용케이블조립체
- 결합방식 : Bayonet Coupling 결합방식
- 접점 연결방식 : 압착형(Crimping Type)
- 치수 및 접점배열 : MIL-DTL-26482 규격과 일치
Ordering Information

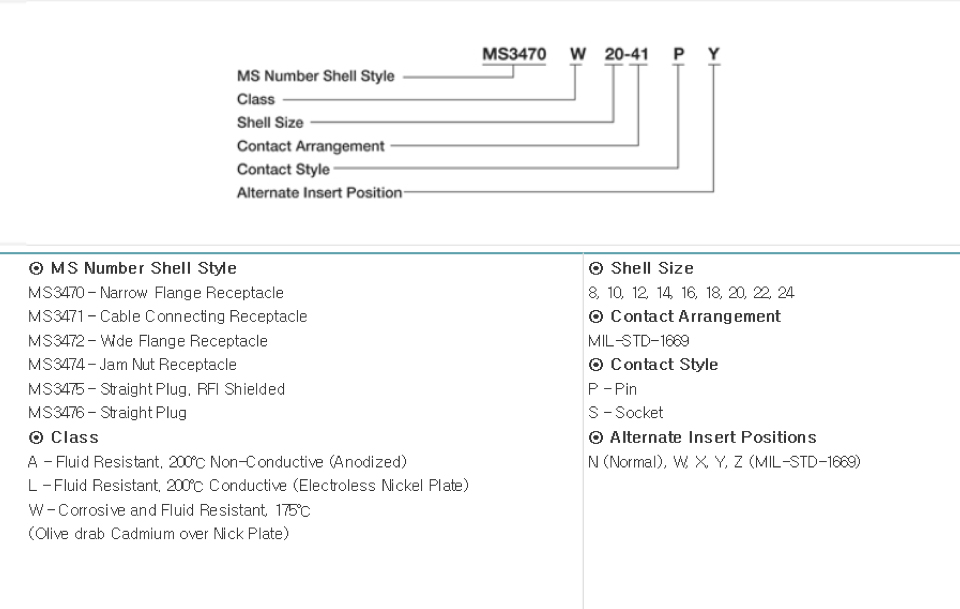

Military Nomenclature
기술정보(Technical Date)
표준 재질 및 보호피막(Standard Materials and Finishes)
| Description | Materials | Finishes |
| Shell, Coupling Nut,Jam Nut | Aluminium alloy | Electroless nikel per MIL-L-26074 |
| Anodized per MIL-A-8625 or olive drab | ||
| cadmium, over Nickel or Zinc over Nickel | ||
| Insulators | Rigid Dielectric | – |
| Grommets, interfacial and O-ring Seals | Silcone Rubber or Fluorosiclicone Rubber | – |
| contacts | Copper alloy | Gold plate per MIL-G-45204 |
전기적 특성(Electrical Date)
| Contact size | AWG wire size | Insulation O.D. Limits (mm) | Max Current | Potential Drop | |
| Min | Max | For Test (amps) | (Millivolts at 25℃) | ||
| 12 | 12 | 2.46 | 4.01 | 23 | 50 |
| 14 | 17 | 45 | |||
| 16 | 16 | 1.53 | 2.62 | 13 | 50 |
| 20 | 7.5 | 45 | |||
| 20 | 20 | 1.02 | 2.11 | 7.5 | 55 |
| 24 | 3 | 45 | |||
Dielectric Withstanding Voltage
| Service Rating | Operating Voltaire. Max. | Test Voltaire. AC(rms), 60cps | ||||
| AC(rms) | DC | Sea Level | 50,000(ft) | 70,000(ft) | 110,000(ft) | |
| Ⅰ | 600 | 850 | 1500 | 500 | 375 | 200 |
| Ⅱ | 1000 | 1275 | 2300 | 750 | 500 | 200 |
| 사용온도범위(Operating Temperature Range) | -55℃ ~ +125℃ |
| 절연저항(Insulation Resistance) | 5,000MΩ Min.(at 25℃) |
| 내구성(Durability) | 500 cycle, mate and unmate |
